Sykes-Pickavant Internal Split Collets Extractor Kit with 9 Extractors -09580000

Product Description

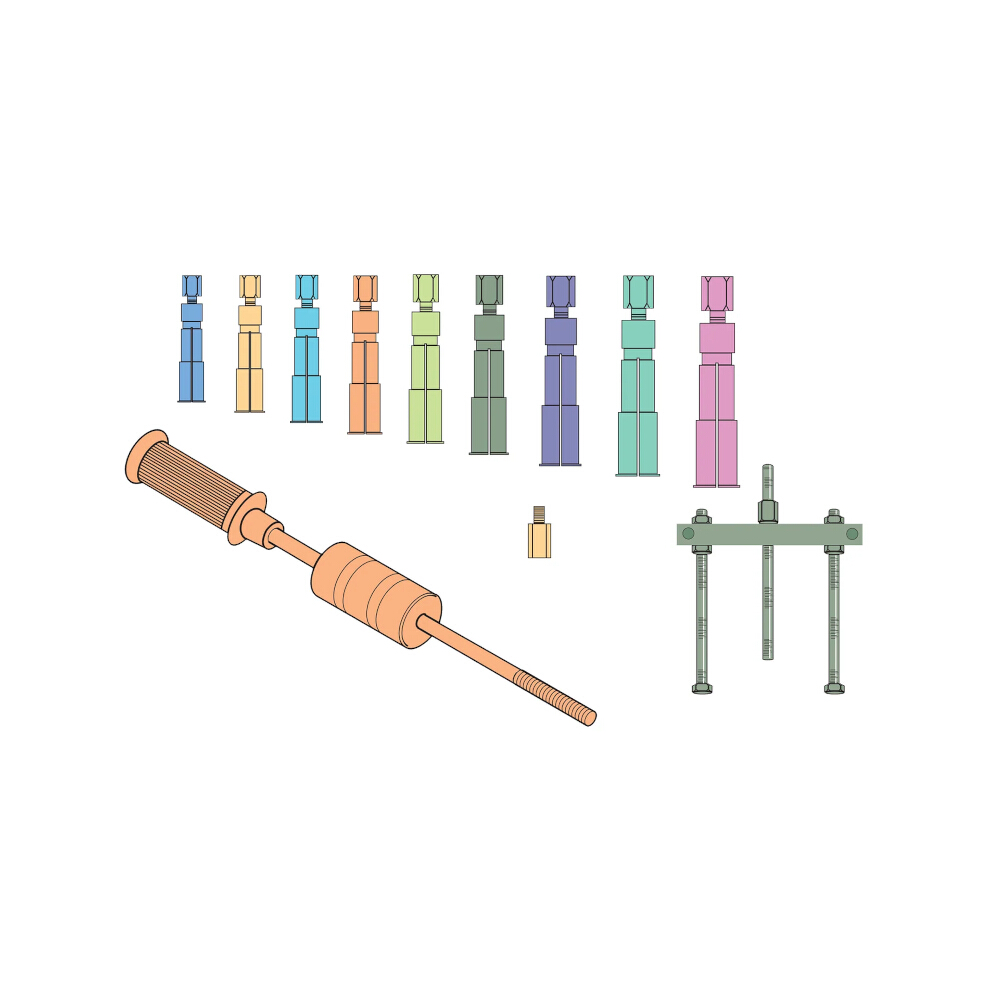

Internal Split Collets Extractor Kit
Extract components quickly and efficiently when conventional pullers cannot be used.
Removes gears, bearings, pinions, oil seals etc.
Can be upgraded for twin/triple leg pulling.
Additional twin beam pulling unit available part no. 09580500.
Supplied in metal case.
Specifications:
Internal Spread Min – Max: 6.5-60mm
No of Split Collet Extractors: 9
Thread size – ½⌀ x 20 UNF

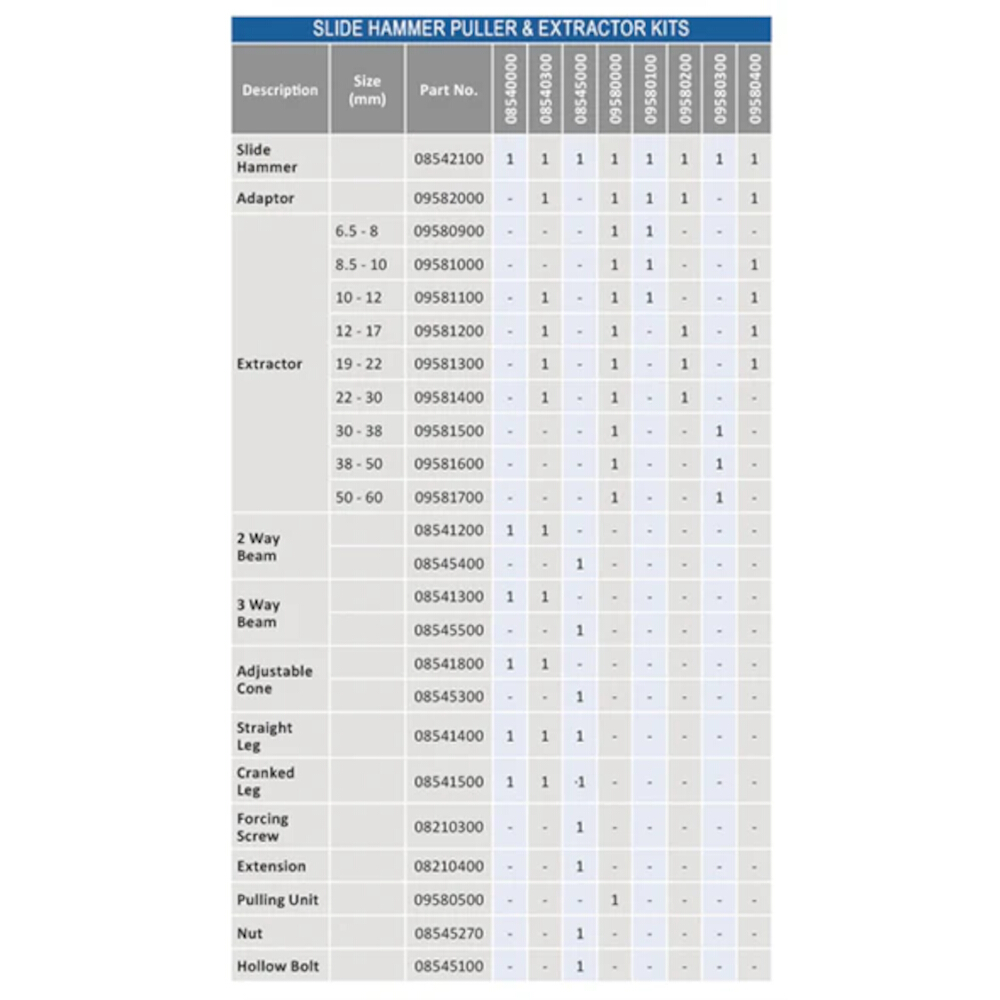

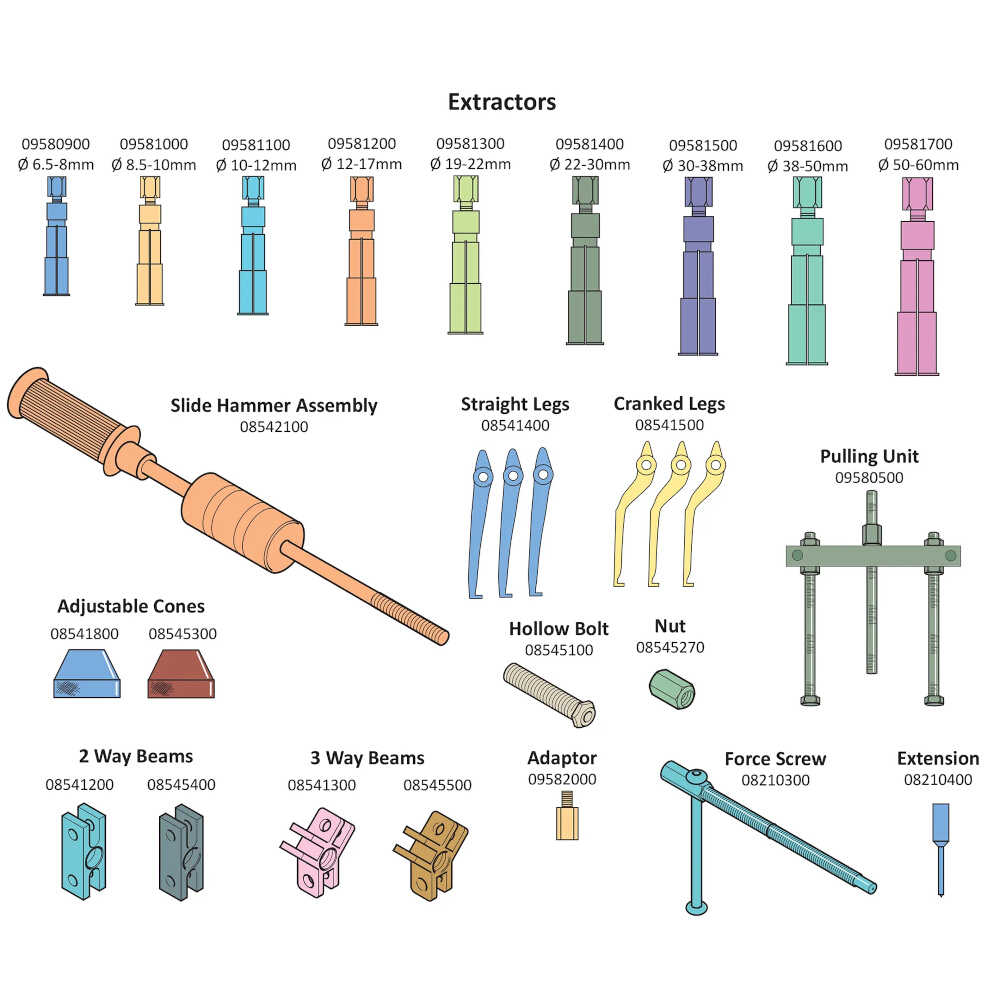

Contents:
08542100 1 x Slide Hammer Assembly
09580500 1 x Pulling Unit
09580900 1 x Split Collet Extractor 6.5 – 8mm (No.00)
09581000 1 x Split Collet Extractor 8.5 – 10mm (No.0)
09581100 1 x Split Collet Extractor 10 – 12mm (No.1)
09581200 1 x Split Collet Extractor 12 – 17mm (No.2)
09581300 1 x Split Collet Extractor 19 – 22mm (No.3)
09581400 1 x Split Collet Extractor 22 – 30mm (No.4)
09581500 1 x Split Collet Extractor 30 – 38mm (No.5)
09581600 1 x Split Collet Extractor 38 – 50mm (No.6)
09581700 1 x Split Collet Extractor 50 – 60mm (No.9)
09582000 1 x Adaptor
