Description
Hydraulic Puller and Separator Kit 50 – 150mm
Hydraulic 1500 series

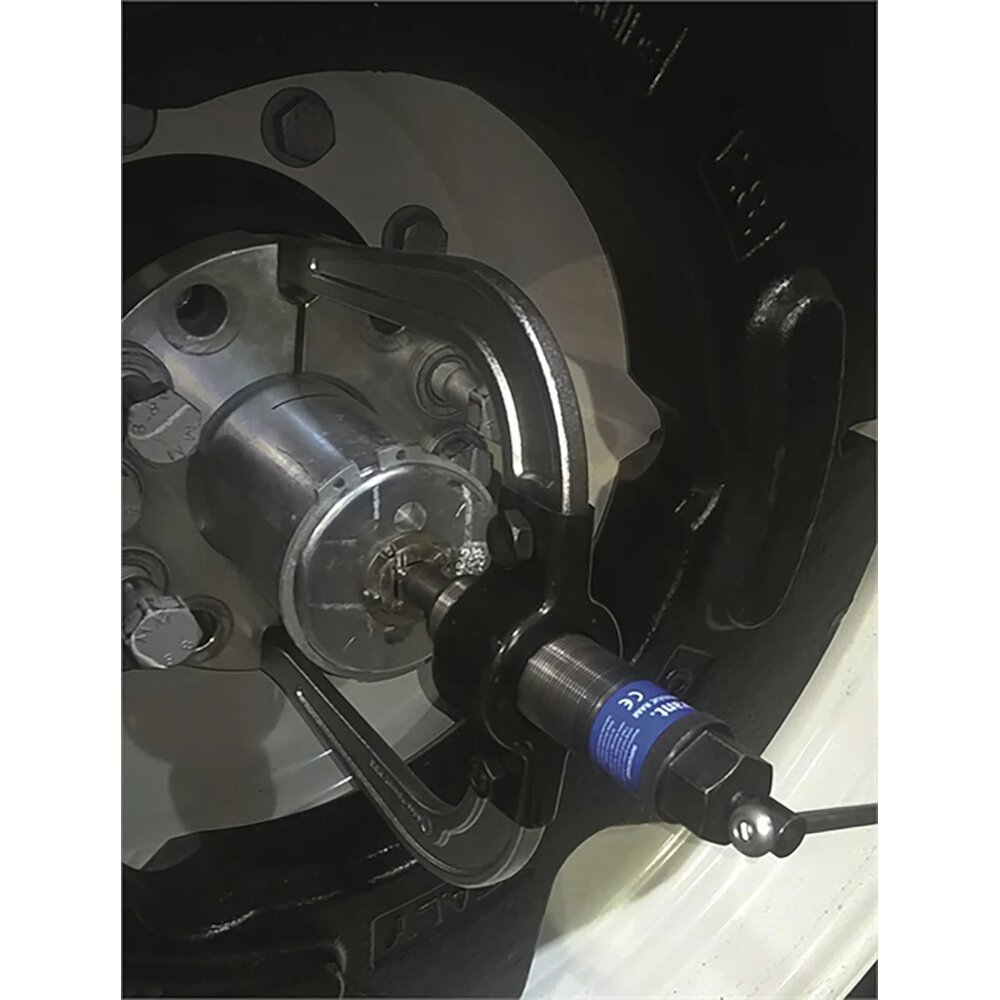

Removes gears, bearings, pulleys and sprockets
Wide range of automotive and industrial applications
Powered by 1500 series hydraulic ram
Safe and easy to use
8 tonnes of force with minimum effort
Easy to adjust
Non-twisting for improved stability
Supplied with nose piece for use on centered shafts
Self centering and self locking
Redesigned legs, improving strength
The separator is a versatile tool where a long reach is required to draw a bearing from a shaft.
The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access.
Makes 4 different twin/triple leg pullers, plus bearing separator kit
Supplied in metal case
Dimensions:
Puller Spread Min – Max: 50-150mm
Puller Reach Max: 150mm
External Spread Min – Max: 20-105mm
External Reach Max: 876mm

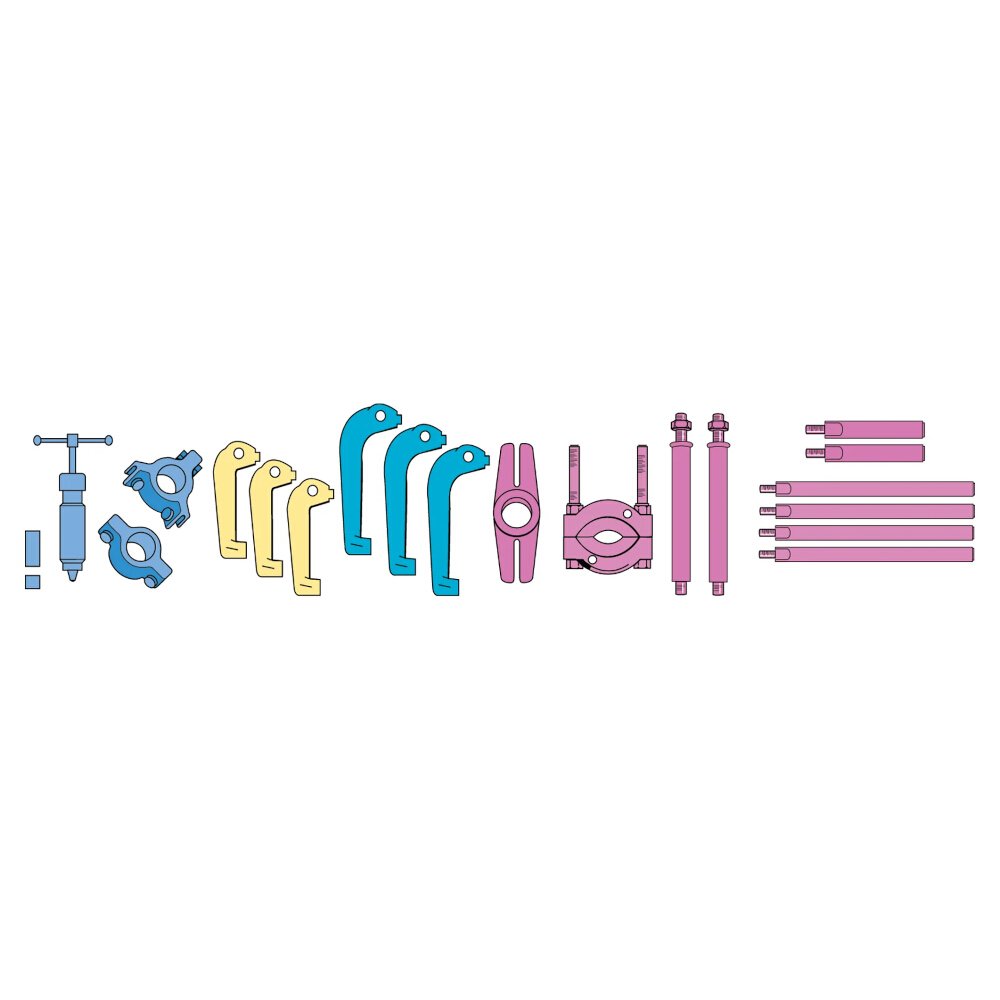

Contents:
1500 Series Hydraulic Ram With Nose Piece
15241200 1 x Twin Head
15341300 1 x Triple Head
15242200 1 x Ram Extension – 50mm
15262400 1 x Ram Extension – 100mm
15242400 3 x Legs – 100mm
15262600 3 x Legs – 150mm
19311200 1 x Twin Beam
09510000 1 x Separator 20-105mm
09311500 2 x Main Rods
09311900 4 x Extension Rods
09312300 2 x Extension Rods 5 inch
