Product Description
Hydraulic 2/3 Leg Puller Kit 50 – 250mm
Hydraulic 1500 series
Removes gears, bearings, pulleys and sprockets
Wide range of automotive and industrial applications
Powered by 1500 series hydraulic ram
Safe and easy to use
8 tonnes of force with minimum effort
Easy to adjust
Non-twisting for improved stability
Supplied with nose piece for use on centred shafts
Self centering and self locking
Redesigned legs, improving strength
Makes 8 different twin/triple leg pullers
Supplied in metal case
Dimensions:
Puller Spread Min – Max: 50 – 250mm
Puller Reach Max: 250mm
Ram Extension: 50 / 100 / 150mm

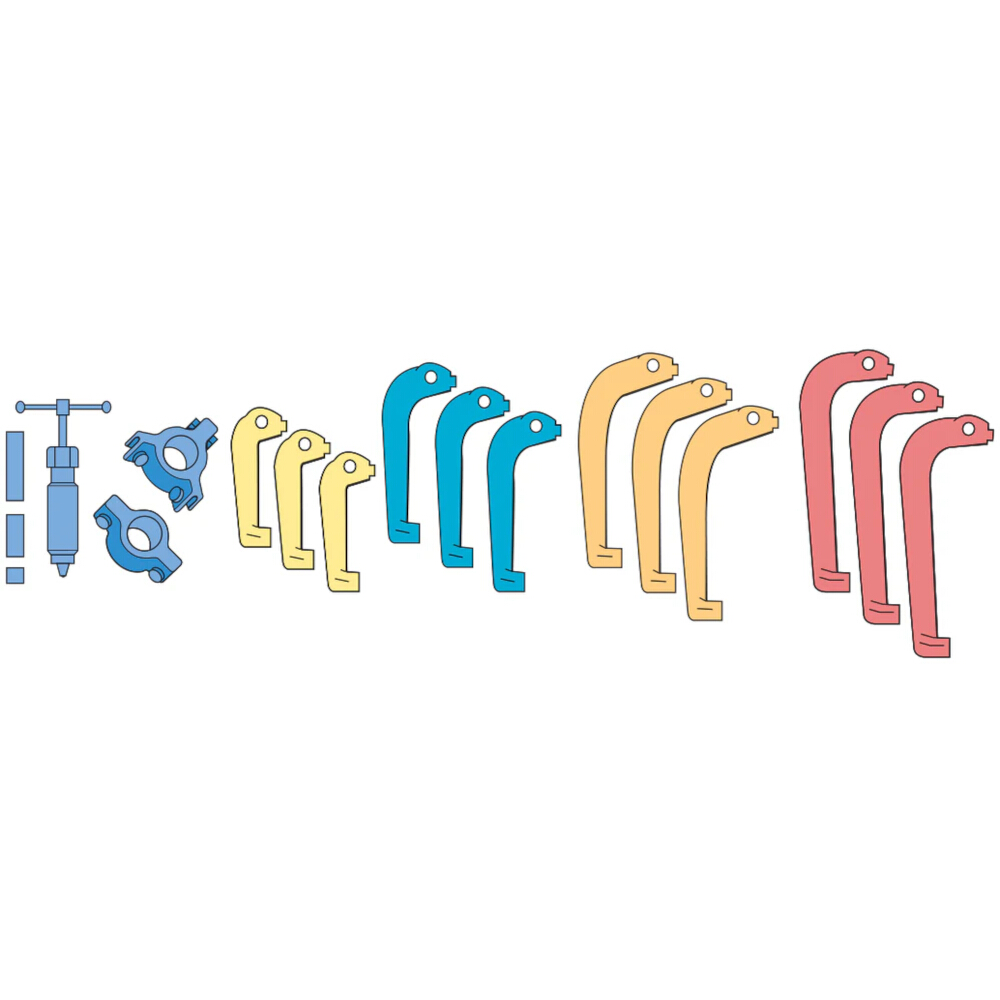

Contents:
150000V2 1 x Hydraulic Ram With Nose Piece
15241200 1 x Twin Head
15341300 1 x Triple Head
15242200 1 x Ram Extension – 50mm
15262400 1 x Ram Extension – 100mm
15272600 1 x Ram Extension – 150mm
15242400 3 x Legs – 100mm
15262600 3 x Legs – 150mm
15282800 3 x Legs – 200mm
15292900 3 x Legs – 250mm (extra wide)
